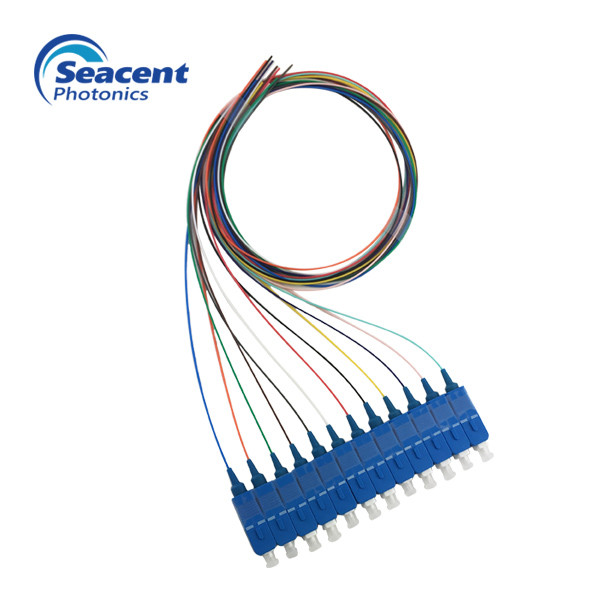

UPC Sc Fiber Optic Pigtail Communication Equipment Customized Length

Brand Name : Seacent

Model Number : simplex Single Mode

Certification : ISO9001, ROHS

Place of Origin : Guangdong, China

MOQ : 1 piece

Payment Terms : L/C, T/T, D/P

Delivery Time : 5-8 work days

Jacket material : OFNP,PVC.LSZH

Color : Yellow/orange/Aqua

Cable diameter : 0.9/2.0/3.0mm

Connector type : FC SC ST LC

Cable length : Customized

Repeatability(dB) : ≤0.1

Durability (dB) : ≤0.2

Application : FTTH FTTB FTTX Network,cabling system

Contact Now

APC Simplex Sc Single Mode Pigtail Communication Equipment Customized Length

Description:

As a specialized multi-fiber patch cord producer and provider, Seacent Photonics offers various types of patch cable solutions. We are committed to offering high standard quality products at competitive prices and conduct rigorous quality controls on each manufacturing step. Seacent Photonics fiber optic cable meets RoHS and ISO9001 compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features:

  • SC, LC, FC, ST connectors are available;
  • Cable diameters: Φ0.9, Φ2.0, Φ3.0mm
  • Low insertion loss; High return loss;
  • 100% interferometer measurement;
  • High temperature stability
  • Certified by Telcordia GR.1209 and GR.1221
  • Meet ROHS standards

Appliaction:

  • Local Area Network (LAN);
  • Data communication network;
  • Telecommunication optical transmission network;
  • Optical access network(OAN);
  • Active device termination;
  • Fiber optics data transmission(FODT);
  • Test Equipment;
  • CATV.

Technical parameter:

FC,SC,LC

ST,MU

MTRJ

SM

MM

SM

MM

SM

MM

UPC

APC

UPC

APC

UPC

APC

UPC

APC

UPC

APC

UPC

APC

Working wavelength(nm)

1310,1550

850,1300

1310,1550

850,1300

1310,1550

850,1300

Fiber type

G657A1 or customed

Insertion loss(dB)

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

Return loss(dB)

≥55

≥60

≥35

≥35

≥50

≥50

≥35

≥35

≥50

≥50

≥35

≥35

Repeatability(dB)

≤0.1

Interchangeability(dB)

≤0.2

Number of plugs(frequency)

≥1000

Tensile strength (N)

≥70

Durability (dB)

≤0.2

Working temperature (°C)

-40℃- 85℃

Storage temperature(°C)

-40℃- 85℃


Ferrule technical parameters:

description Single mode Multi mode
length (10.50±0.05)nm (10.50±0.01)nm
Outer diameter (2.4990±0.005)nm (2.4990±0.001)nm
inside diameter (0.125±0.001)nm (0.126±0.129)nm
Concentricity ≤1.0 ≤4.0

Ordering information:

Connector type Casing color Fiber type Cable diameter Fiber length Cable type Casing material

1=FC/APC

2=FC/UPC

3=SC/APC

4=SC/UPC

5=LC/APC

6=LC/UPC

7=ST

8=Customized

1=yellow

2=Orange

3=Aqua blue

S=Customized

1=SM9/125 G652D

2=SM9/125 G657A

3=MM50/125 OM3

4=MM62.5/125 OM1

S=Customized

1=0.9mm

2=2.0mm

3=3.0mm

0=0.5m

1=1.0m

2=1.5m

3=2.0m

S=Customized

1=Single core

2=Double core

3=waterproof

4=Branch

5=With fiber

6=Bundle

1=PVC

2=LSZH

3=OF

Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
